Winkhaus Thunderbolt Door Kit
Description

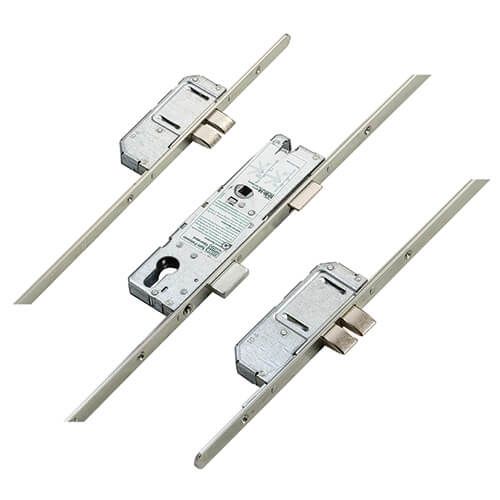

Winkhaus Thunderbolt Multipoint Kit

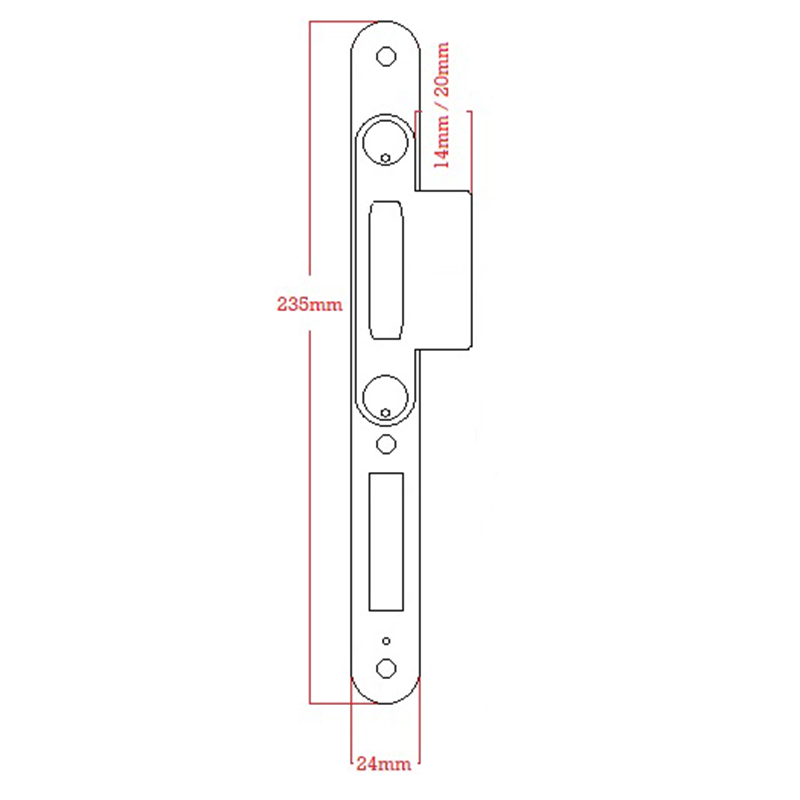

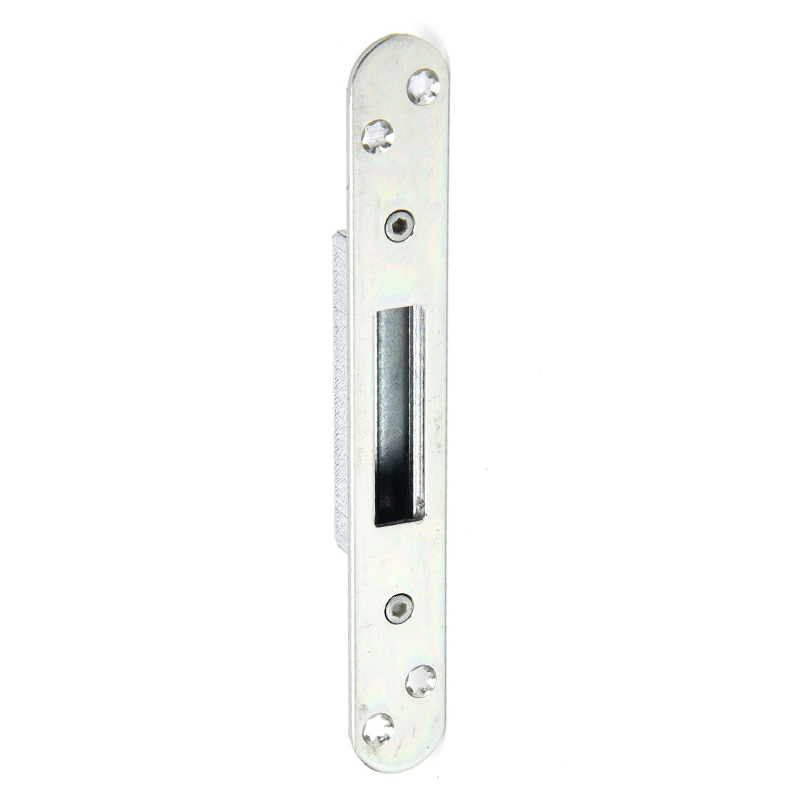

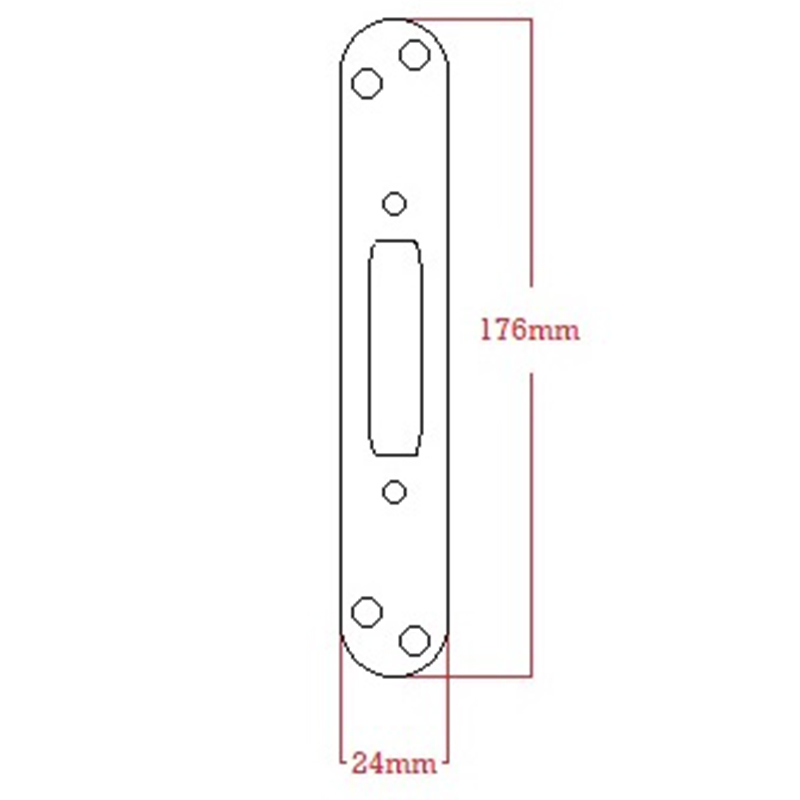

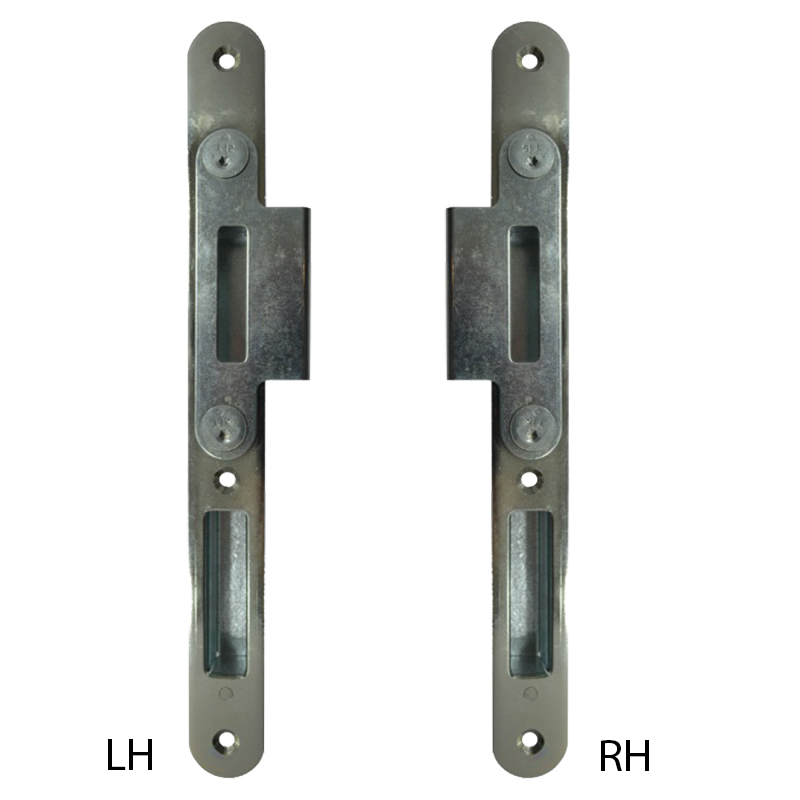

Kit Contains: 1 x Multipoint Lock, 2 x Deadbolt Keeps, 1 x Centre Keep (44mm or 56mm)
The Winkhaus ThunderBolt 5 point locking has been especially designed with increased tolerances for door installers. This locking system incorporates twin deadbolts in the upper and lower positions, providing high security level.

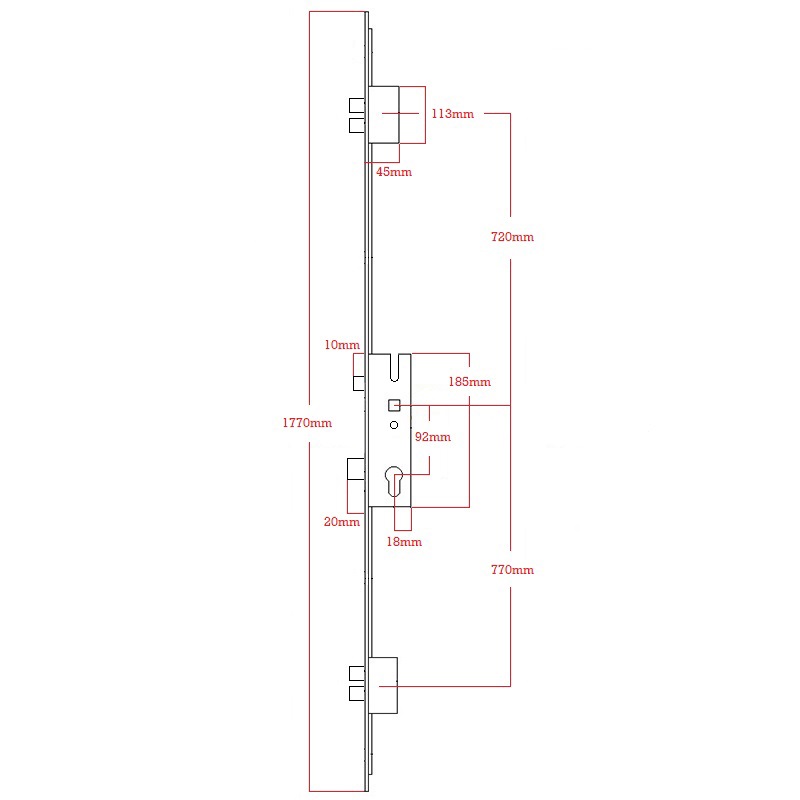

Overall Length: 1770mm
Backset: 45mm
Centres: 92mm
Faceplate: 20mm Radius End
Spindle: Solid Spindle
Distance Between Deadbolts: 1490mm
Distance Between Extension Bolts: 1675mm
Features & Benefits
- Operation: Lift Lever
- Latch Reversal: Push in the latch and a screw will appear in the back of the lockcase. Undo the screw to remove the latch. Reverse, reinsert the latch and replace the screw.
Handing Chart
| Standing Outside Door Hinged | Door Opens | Handing |
| Left | Inward | Right Hand |
| Left | Outward | Left Hand |
| Right | Inward | Left Hand |
| Right | Outward | Right Hand |
